特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

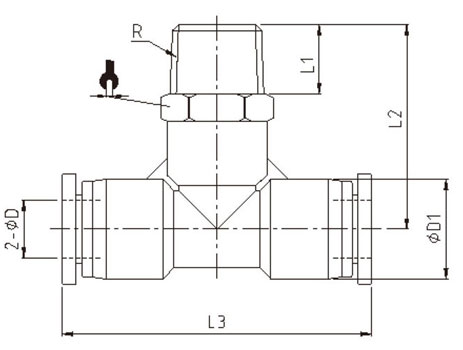

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
IPB04-M5 | 4 | M5 | 3.5 | 21.3 | 38 | 11.5 | 10 |
IPB04-M6 | 4 | M6 | 4 | 21.8 | 38 | 11.5 | 10 |
IPB04-01 | 4 | R1/8 | 7.5 | 23.8 | 38 | 11.5 | 10 |
IPB04-02 | 4 | R1/4 | 9.5 | 26.8 | 38 | 11.5 | 14 |
IPB04-03 | 4 | R3/8 | 10.5 | 28.3 | 38 | 11.5 | 17 |
IPB06-M5 | 6 | M5 | 3.5 | 21.7 | 39 | 13.5 | 12 |
IPB06-M6 | 6 | M6 | 4 | 22.2 | 39 | 13.5 | 12 |
IPB06-01 | 6 | R1/8 | 7.5 | 24.2 | 39 | 13.5 | 12 |
IPB06-02 | 6 | R1/4 | 9.5 | 26.7 | 39 | 13.5 | 14 |
IPB06-03 | 6 | R3/8 | 10.5 | 28.2 | 39 | 13.5 | 17 |
IPB06-04 | 6 | R1/2 | 13.5 | 31.7 | 39 | 13.5 | 21 |
IPB08-01 | 8 | R1/8 | 7.5 | 27.5 | 45 | 15 | 14 |
IPB08-02 | 8 | R1/4 | 9.5 | 29.5 | 45 | 15 | 14 |
IPB08-03 | 8 | R3/8 | 10.5 | 31 | 45 | 15 | 17 |
IPB08-04 | 8 | R1/2 | 13.5 | 34.5 | 45 | 15 | 21 |
IPB10-01 | 10 | R1/8 | 7.5 | 32.8 | 57 | 19 | 17 |
IPB10-02 | 10 | R1/4 | 9.5 | 34.8 | 57 | 19 | 17 |
IPB10-03 | 10 | R3/8 | 10.5 | 35.8 | 57 | 19 | 17 |
IPB10-04 | 10 | R1/2 | 13.5 | 39.3 | 57 | 19 | 21 |
IPB12-01 | 12 | R1/8 | 7.5 | 33.5 | 59 | 21.5 | 21 |
IPB12-02 | 12 | R1/4 | 9.5 | 36 | 59 | 21.5 | 21 |
IPB12-03 | 12 | R3/8 | 10.5 | 37 | 59 | 21.5 | 21 |
IPB12-04 | 12 | R1/2 | 13.5 | 40 | 59 | 21.5 | 21 |
IPB14-03 | 14 | R3/8 | 10.5 | 41 | 54 | 23.5 | 22 |
IPB14-04 | 14 | R1/2 | 13.5 | 44 | 54 | 23.5 | 22 |
IPB15-03 | 15 | R3/8 | 10.5 | 44 | 66 | 26.5 | 24 |
IPB15-04 | 15 | R1/2 | 13.5 | 47 | 66 | 26.5 | 24 |
IPB16-03 | 16 | R3/8 | 10.5 | 44 | 66 | 26.5 | 24 |
IPB16-04 | 16 | R1/2 | 13.5 | 47 | 66 | 26.5 | 24 |
IPB16-06 | 16 | R3/4 | 15 | 49 | 66 | 26.5 | 27 |
