特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

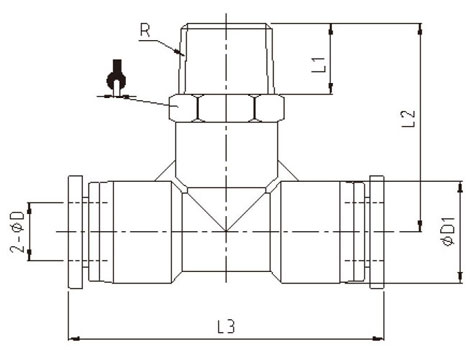

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
IPB5/32-N01 | 5/32 | NPT1/8 | 7.5 | 21.3 | 38 | 11.5 | 7/16 |
IPB5/32-N02 | 5/32 | NPT1/4 | 9.5 | 21.8 | 38 | 11.5 | 9/16 |
IPB3/16-N01 | 3/16 | NPT1/8 | 7.5 | 21.3 | 38 | 11.5 | 7/16 |
IPB3/16-N02 | 3/16 | NPT1/4 | 9.5 | 21.8 | 38 | 11.5 | 9/16 |
IPB1/4-N01 | 1/4 | NPT1/8 | 7.5 | 24.2 | 39 | 13.5 | 1/2 |
IPB1/4-N02 | 1/4 | NPT1/4 | 9.5 | 26.7 | 39 | 13.5 | 9/16 |
IPB1/4-N03 | 1/4 | NPT3/8 | 10.5 | 28.2 | 39 | 13.5 | 11/16 |
IPB1/4-N04 | 1/4 | NPT1/2 | 13.5 | 31.7 | 39 | 13.5 | 7/8 |
IPB5/16-N01 | 5/16 | NPT1/8 | 7.5 | 27.5 | 45 | 15 | 9/16 |
IPB5/16-N02 | 5/16 | NPT1/4 | 9.5 | 29.5 | 45 | 15 | 9/16 |
IPB5/16-N03 | 5/16 | NPT3/8 | 10.5 | 31 | 45 | 15 | 11/16 |
IPB5/16-N04 | 5/16 | NPT1/2 | 13.5 | 34.5 | 45 | 15 | 7/8 |
IPB3/8-N01 | 3/8 | NPT1/8 | 7.5 | 32.8 | 57 | 19 | 11/16 |
IPB3/8-N02 | 3/8 | NPT1/4 | 9.5 | 34.8 | 57 | 19 | 11/16 |
IPB3/8-N03 | 3/8 | NPT3/8 | 10.5 | 35.8 | 57 | 19 | 11/16 |
IPB3/8-N04 | 3/8 | NPT1/2 | 13.5 | 39.3 | 57 | 19 | 7/8 |
IPB1/2-N01 | 1/2 | NPT1/8 | 7.5 | 33.5 | 59 | 21.5 | 7/8 |
IPB1/2-N02 | 1/2 | NPT1/4 | 9.5 | 36 | 59 | 21.5 | 7/8 |
IPB1/2-N03 | 1/2 | NPT3/8 | 10.5 | 37 | 59 | 21.5 | 7/8 |
IPB1/2-N04 | 1/ 2 | NPT1/2 | 13.5 | 40 | 59 | 21.5 | 7/8 |
