特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

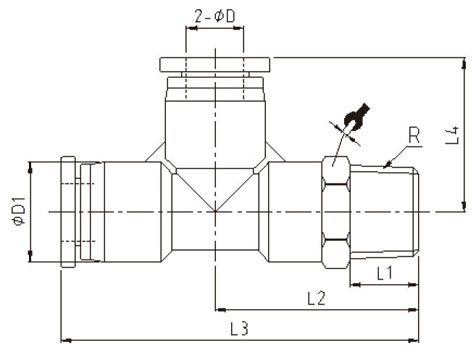

MODEL | ΦD | R | L1 | L2 | L3 | L4 | ΦD1 |  |
IPD04-M5 | 4 | M5 | 3.5 | 21.3 | 40.3 | 19 | 11.5 | 10 |
IPD04-M6 | 4 | M6 | 4 | 21.8 | 40.8 | 19 | 11.5 | 10 |
IPD04-01 | 4 | R1/8 | 7.5 | 23.8 | 42.8 | 19 | 11.5 | 10 |
IPD04-02 | 4 | R1/4 | 9.5 | 26.8 | 45.8 | 19 | 11.5 | 14 |
IPD04-03 | 4 | R3/8 | 10.5 | 28.3 | 47.3 | 19 | 11.5 | 17 |
IPD06-M5 | 6 | M5 | 3.5 | 21.7 | 40.9 | 19.2 | 13.5 | 12 |
IPD06-M6 | 6 | M6 | 4 | 22.2 | 41.4 | 19.2 | 13.5 | 12 |
IPD06-01 | 6 | R1/8 | 7.5 | 24.2 | 43.4 | 19.2 | 13.5 | 12 |
IPD06-02 | 6 | R1/4 | 9.5 | 26.7 | 46 | 19.2 | 13.5 | 14 |
IPD06-03 | 6 | R3/8 | 10.5 | 28.2 | 47.5 | 19.2 | 13.5 | 17 |
IPD06-04 | 6 | R1/2 | 13.5 | 31.7 | 51 | 19.2 | 13.5 | 21 |
IPD08-01 | 8 | R1/8 | 7.5 | 27.5 | 50 | 22.5 | 15 | 14 |
IPD08-02 | 8 | R1/4 | 9.5 | 29.5 | 52 | 22.5 | 15 | 14 |
IPD08-03 | 8 | R3/8 | 10.5 | 31 | 53.5 | 22.5 | 15 | 17 |
IPD08-04 | 8 | R1/2 | 13.5 | 34.5 | 57 | 22.5 | 15 | 21 |
IPD10-01 | 10 | R1/8 | 7.5 | 33 | 61.5 | 27.8 | 19 | 17 |
IPD10-02 | 10 | R1/4 | 9.5 | 35 | 63.5 | 27.8 | 19 | 17 |
IPD10-03 | 10 | R3/8 | 10.5 | 36 | 64.5 | 27.8 | 19 | 17 |
IPD10-04 | 10 | R1/2 | 13.5 | 39.5 | 68 | 27.8 | 19 | 21 |
IPD12-01 | 12 | R1/8 | 7.5 | 33.5 | 63 | 29.5 | 21.5 | 21 |
IPD12-02 | 12 | R1/4 | 9.5 | 36 | 65.5 | 29.5 | 21.5 | 21 |
IPD12-03 | 12 | R3/8 | 10.5 | 37 | 66.5 | 29.5 | 21.5 | 21 |
IPD12-04 | 12 | R1/2 | 13.5 | 40 | 69.5 | 29.5 | 21.5 | 21 |
IPD14-03 | 14 | R3/8 | 10.5 | 40 | 70 | 30 | 23.5 | 22 |
IPD14-04 | 14 | R1/2 | 13.5 | 43 | 73 | 30 | 23.5 | 22 |
IPD15-03 | 15 | R3/8 | 10.5 | 44 | 77 | 33 | 26.5 | 24 |
IPD15-04 | 15 | R1/2 | 13.5 | 47 | 80 | 33 | 26.5 | 24 |
IPD16-03 | 16 | R3/8 | 10.5 | 44 | 77 | 33 | 26.5 | 24 |
IPD16-04 | 16 | R1/2 | 13.5 | 47 | 80 | 33 | 26.5 | 24 |
IPD16-06 | 16 | R3/4 | 15 | 49 | 82 | 33 | 26.5 | 27 |
