特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

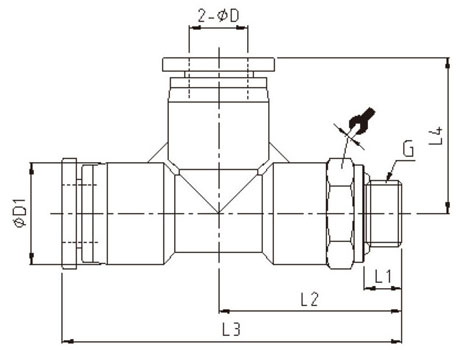

MODEL | ΦD | G | L1 | L2 | L3 | L4 | ΦD1 |  |
IPD04-G01 | 4 | G1/8 | 5.5 | 24.3 | 43.3 | 19 | 11.5 | 14 |
IPD04-G02 | 4 | G1/4 | 7.5 | 26.8 | 45.8 | 19 | 11.5 | 17 |
IPD06-G01 | 6 | G1/8 | 5.5 | 24.2 | 43.4 | 19.2 | 13.5 | 14 |
IPD06-G02 | 6 | G1/4 | 7.5 | 26.7 | 46 | 19.2 | 13.5 | 17 |
IPD06-G03 | 6 | G3/8 | 7.5 | 27.2 | 46.5 | 19.2 | 13.5 | 20 |
IPD06-G04 | 6 | G1/2 | 10 | 29.7 | 49 | 19.2 | 13.5 | 24 |
IPD08-G01 | 8 | G1/8 | 5.5 | 27 | 49.5 | 22.5 | 15 | 14 |
IPD08-G02 | 8 | G1/4 | 7.5 | 29.5 | 52 | 22.5 | 15 | 17 |
IPD08-G03 | 8 | G3/8 | 7.5 | 30 | 52.5 | 22.5 | 15 | 20 |
IPD08-G04 | 8 | G1/2 | 10 | 32.5 | 55 | 22.5 | 15 | 24 |
IPD10-G01 | 10 | G1/8 | 5.5 | 32.5 | 61 | 27.8 | 19 | 17 |
IPD10-G02 | 10 | G1/4 | 7.5 | 35 | 63.5 | 27.8 | 19 | 17 |
IPD10-G03 | 10 | G3/8 | 7.5 | 35 | 63.5 | 27.8 | 19 | 20 |
IPD10-G04 | 10 | G1/2 | 10 | 38.5 | 67 | 27.8 | 19 | 24 |
IPD12-G01 | 12 | G1/8 | 5.5 | 33.5 | 63 | 29.5 | 21.5 | 21 |
IPD12-G02 | 12 | G1/4 | 7.5 | 36 | 65.5 | 29.5 | 21.5 | 21 |
IPD12-G03 | 12 | G3/8 | 7.5 | 36 | 65.5 | 29.5 | 21.5 | 21 |
IPD12-G04 | 12 | G1/2 | 10 | 39 | 68.5 | 29.5 | 21.5 | 24 |
IPD14-G03 | 14 | G3/8 | 7.5 | 39.5 | 66.5 | 27 | 23.5 | 22 |
IPD14-G04 | 14 | G1/2 | 10 | 43 | 68.5 | 27 | 23.5 | 24 |
IPD15-G03 | 15 | G3/8 | 7.5 | 42.5 | 75.5 | 33 | 26.5 | 24 |
IPD15-G04 | 15 | G1/2 | 10 | 44 | 77 | 33 | 26.5 | 24 |
IPD16-G03 | 16 | G3/8 | 7.5 | 42.5 | 75.5 | 33 | 26.5 | 24 |
IPD16-G04 | 16 | G1/2 | 10 | 44 | 77 | 33 | 26.5 | 24 |
