特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

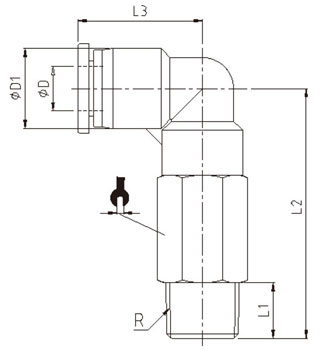

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
IPLL04-M5 | 4 | M5 | 3.5 | 33.3 | 19 | 11.5 | 10 |
IPLL04-M6 | 4 | M6 | 4 | 33.8 | 19 | 11.5 | 10 |
IPLL04-01 | 4 | R1/8 | 7.5 | 35.8 | 19 | 11.5 | 10 |
IPLL04-02 | 4 | R1/4 | 9.5 | 38.8 | 19 | 11.5 | 14 |
IPLL06-M5 | 6 | M5 | 3.5 | 35 | 19.2 | 13.5 | 12 |
IPLL06-M6 | 6 | M6 | 4 | 35.5 | 19.2 | 13.5 | 12 |
IPLL06-01 | 6 | R1/8 | 7.5 | 38.2 | 19.2 | 13.5 | 12 |
IPLL06-02 | 6 | R1/4 | 9.5 | 40.7 | 19.2 | 13.5 | 14 |
IPLL06-03 | 6 | R3/8 | 10.5 | 42.2 | 19.2 | 13.5 | 17 |
IPLL06-04 | 6 | R1/2 | 13.5 | 45.7 | 19.2 | 13.5 | 21 |
IPLL08-01 | 8 | R1/8 | 7.5 | 42.8 | 22.5 | 15 | 14 |
IPLL08-02 | 8 | R1/4 | 9.5 | 44.8 | 22.5 | 15 | 14 |
IPLL08-03 | 8 | R3/8 | 10.5 | 46.4 | 22.5 | 15 | 17 |
IPLL08-04 | 8 | R1/2 | 13.5 | 48.8 | 22.5 | 15 | 21 |
IPLL10-01 | 10 | R1/8 | 7.5 | 52.3 | 27.8 | 19 | 17 |
IPLL10-02 | 10 | R1/4 | 9.5 | 54.3 | 27.8 | 19 | 17 |
IPLL10-03 | 10 | R3/8 | 10.5 | 55.3 | 27.8 | 19 | 17 |
IPLL10-04 | 10 | R1/2 | 13.5 | 58.8 | 27.8 | 19 | 21 |
IPLL12-01 | 12 | R1/8 | 7.5 | 57 | 29.5 | 21.5 | 21 |
IPLL12-02 | 12 | R1/4 | 9.5 | 59 | 29.5 | 21.5 | 21 |
IPLL12-03 | 12 | R3/8 | 10.5 | 60 | 29.5 | 21.5 | 21 |
IPLL12-04 | 12 | R1/2 | 13.5 | 63 | 29.5 | 21.5 | 21 |
