特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

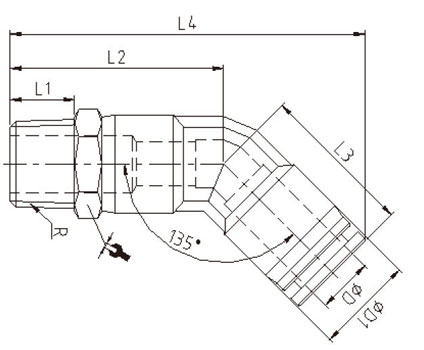

MODEL | ΦD | R | L1 | L2 | L3 | L4 | ΦD1 |  |
IPL45 04-M5 | 4 | M5 | 3.5 | 22.5 | 19 | 39.5 | 11.3 | 10 |
IPL45 04-M6 | 4 | M6 | 4 | 23.5 | 19 | 40.5 | 11.3 | 10 |
IPL45 04-01 | 4 | R1/8 | 7.5 | 25 | 19 | 42 | 11.3 | 10 |
IPL45 04-02 | 4 | R1/4 | 9.5 | 28 | 19 | 45 | 11.3 | 14 |
IPL45 04-03 | 4 | R3/8 | 10.5 | 29.5 | 19 | 46.5 | 11.3 | 17 |
IPL45 06-M5 | 6 | M5 | 3.5 | 22.5 | 19.2 | 40.5 | 13.3 | 12 |
IPL45 06-M6 | 6 | M6 | 4 | 23.5 | 19.2 | 41.5 | 13.3 | 12 |
IPL45 06-01 | 6 | R1/8 | 7.5 | 25.5 | 19.2 | 43.5 | 13.3 | 12 |
IPL45 06-02 | 6 | R1/4 | 9.5 | 28 | 19.2 | 46 | 13.3 | 14 |
IPL45 06-03 | 6 | R3/8 | 10.5 | 29.5 | 19.2 | 47.5 | 13.3 | 17 |
IPL45 06-04 | 6 | R1/2 | 13.5 | 33 | 19.2 | 51 | 13.3 | 21 |
IPL45 08-01 | 8 | R1/8 | 7.5 | 29.5 | 22.5 | 50 | 14.8 | 14 |
IPL45 08-02 | 8 | R1/4 | 9.5 | 31.5 | 22.5 | 52 | 14.8 | 14 |
IPL45 08-03 | 8 | R3/8 | 10.5 | 33 | 22.5 | 53.5 | 14.8 | 17 |
IPL45 08-04 | 8 | R1/2 | 13.5 | 36.5 | 22.5 | 57 | 14.8 | 21 |
IPL45 10-01 | 10 | R1/8 | 7.5 | 34 | 27.8 | 60.5 | 18.7 | 17 |
IPL45 10-02 | 10 | R1/4 | 9.5 | 36 | 27.8 | 62.5 | 18.7 | 17 |
IPL45 10-03 | 10 | R3/8 | 10.5 | 37 | 27.8 | 63.5 | 18.7 | 17 |
IPL45 10-04 | 10 | R1/2 | 13.5 | 40.5 | 27.8 | 67 | 18.7 | 21 |
IPL45 12-01 | 12 | R1/8 | 7.5 | 36 | 29.5 | 64 | 21.3 | 21 |
IPL45 12-02 | 12 | R1/4 | 9.5 | 38.5 | 29.5 | 66.5 | 21.3 | 21 |
IPL45 12-03 | 12 | R3/8 | 10.5 | 39.5 | 29.5 | 67.5 | 21.3 | 21 |
IPL45 12-04 | 12 | R1/2 | 13.5 | 42.5 | 29.5 | 70.5 | 21.3 | 21 |
