特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

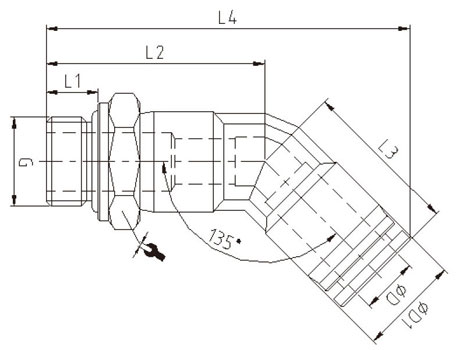

MODEL | ΦD | G | L1 | L2 | L3 | L4 | ΦD1 |  |
IPL45 04-G01 | 4 | G1/8 | 5.5 | 25.5 | 19 | 42.5 | 11.3 | 14 |
IPL45 04-G02 | 4 | G1/4 | 7.5 | 28 | 19 | 45 | 11.3 | 17 |
IPL45 04-G03 | 4 | G3/8 | 7.5 | 28.5 | 19 | 45.5 | 11.3 | 20 |
IPL45 06-G01 | 6 | G1/8 | 5.5 | 25.5 | 19.2 | 43.5 | 13.3 | 14 |
IPL45 06-G02 | 6 | G1/4 | 7.5 | 28 | 19.2 | 46 | 13.3 | 17 |
IPL45 06-G03 | 6 | G3/8 | 7.5 | 28.5 | 19.2 | 46.5 | 13.3 | 20 |
IPL45 06-G04 | 6 | G1/2 | 10 | 31 | 19.2 | 49 | 13.3 | 24 |
IPL45 08-G01 | 8 | G1/8 | 5.5 | 29 | 22.5 | 49.5 | 14.8 | 14 |
IPL45 08-G02 | 8 | G1/4 | 7.5 | 31.5 | 22.5 | 52 | 14.8 | 17 |
IPL45 08-G03 | 8 | G3/8 | 7.5 | 32 | 22.5 | 52.5 | 14.8 | 20 |
IPL45 08-G04 | 8 | G1/2 | 10 | 34.5 | 22.5 | 55 | 14.8 | 24 |
IPL45 10-G01 | 10 | G1/8 | 5.5 | 33.5 | 27.8 | 60 | 18.7 | 17 |
IPL45 10-G02 | 10 | G1/4 | 7.5 | 36 | 27.8 | 62.5 | 18.7 | 17 |
IPL45 10-G03 | 10 | G3/8 | 7.5 | 36 | 27.8 | 62.5 | 18.7 | 20 |
IPL45 10-G04 | 10 | G1/2 | 10 | 39.5 | 27.8 | 66 | 18.7 | 24 |
IPL45 12-G01 | 12 | G1/8 | 5.5 | 36 | 29.5 | 64 | 21.3 | 21 |
IPL45 12-G02 | 12 | G1/4 | 7.5 | 38.5 | 29.5 | 66.5 | 21.3 | 21 |
IPL45 12-G03 | 12 | G3/8 | 7.5 | 38.5 | 29.5 | 66.5 | 21.3 | 21 |
IPL45 12-G04 | 12 | G1/2 | 10 | 41.5 | 29.5 | 69.5 | 21.3 | 24 |
