特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

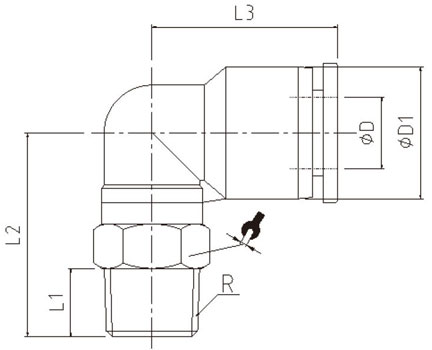

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
IPLN04-M5 | 4 | M5 | 3.5 | 20 | 19 | 11.5 | 10 |
IPLN04-M6 | 4 | M6 | 4 | 20.5 | 19 | 11.5 | 10 |
IPLN04-01 | 4 | R1/8 | 7.5 | 20.5 | 19 | 11.5 | 10 |
IPLN04-02 | 4 | R1/4 | 9.5 | 20 | 19 | 11.5 | 14 |
IPLN04-03 | 4 | R3/8 | 10.5 | 21 | 19 | 11.5 | 17 |
IPLN06-M5 | 6 | M5 | 3.5 | 21 | 19.2 | 13.5 | 10 |
IPLN06-M6 | 6 | M6 | 4 | 21.5 | 19.2 | 13.5 | 10 |
IPLN06-01 | 6 | R1/8 | 7.5 | 21.5 | 19.2 | 13.5 | 10 |
IPLN06-02 | 6 | R1/4 | 9.5 | 21 | 19.2 | 13.5 | 14 |
IPLN06-03 | 6 | R3/8 | 10.5 | 22 | 19.2 | 13.5 | 17 |
IPLN06-04 | 6 | R1/2 | 13.5 | 25.5 | 19.2 | 13.5 | 21 |
IPLN08-01 | 8 | R1/8 | 7.5 | 22.2 | 22.5 | 15 | 12 |
IPLN08-02 | 8 | R1/4 | 9.5 | 21.7 | 22.5 | 15 | 14 |
IPLN08-03 | 8 | R3/8 | 10.5 | 22.7 | 22.5 | 15 | 17 |
IPLN08-04 | 8 | R1/2 | 13.5 | 26.2 | 22.5 | 15 | 21 |
IPLN10-01 | 10 | R1/8 | 7.5 | 26.9 | 27.8 | 19 | 14 |
IPLN10-02 | 10 | R1/4 | 9.5 | 28.4 | 27.8 | 19 | 14 |
IPLN10-03 | 10 | R3/8 | 10.5 | 24.7 | 27.8 | 19 | 17 |
IPLN10-04 | 10 | R1/2 | 13.5 | 28.2 | 27.8 | 19 | 21 |
IPLN12-01 | 12 | R1/8 | 7.5 | 28.2 | 29.5 | 21.5 | 15 |
IPLN12-02 | 12 | R1/4 | 9.5 | 29.7 | 29.5 | 21.5 | 15 |
IPLN12-03 | 12 | R3/8 | 10.5 | 26 | 29.5 | 21.5 | 17 |
IPLN12-04 | 12 | R1/2 | 13.5 | 29.5 | 29.5 | 21.5 | 21 |
IPLN14-03 | 14 | R3/8 | 10.5 | 34 | 29.5 | 23.5 | 20 |
IPLN14-04 | 14 | R1/2 | 13.5 | 33 | 29.5 | 23.5 | 21 |
IPLN16-03 | 16 | R3/8 | 10.5 | 35 | 34 | 26.5 | 20 |
IPLN16-04 | 16 | R1/2 | 13.5 | 34 | 34 | 26.5 | 21 |
