特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

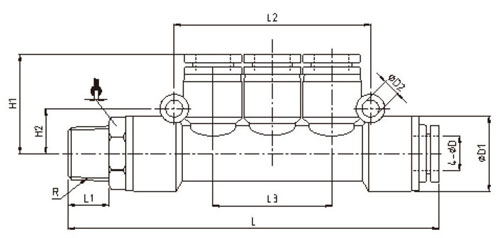

MODEL | ΦD | R | L1 | L | L2 | L3 | ΦD1 | ΦD2 | H1 | H2 |  |
IPKD04-M5 | 4 | M5 | 3.5 | 66 | 42 | 22 | 13 | 3.2 | 19 | 9 | 10 |
IPKD04-01 | 4 | R1/8 | 7.5 | 68.5 | 42 | 22 | 13 | 3.2 | 19 | 9 | 10 |
IPKD04-02 | 4 | R1/4 | 9.5 | 71.5 | 42 | 22 | 13 | 3.2 | 19 | 9 | 14 |
IPKD04-03 | 4 | R3/8 | 10.5 | 72.5 | 42 | 22 | 13 | 3.2 | 19 | 9 | 17 |
IPKD06-M5 | 6 | M5 | 3.5 | 67 | 42 | 26 | 14.5 | 3.2 | 20.5 | 9 | 10 |
IPKD06-01 | 6 | R1/8 | 7.5 | 70 | 42 | 26 | 14.5 | 3.2 | 20.5 | 9 | 12 |
IPKD06-02 | 6 | R1/4 | 9.5 | 72 | 42 | 26 | 14.5 | 3.2 | 20.5 | 9 | 14 |
IPKD06-03 | 6 | R3/8 | 10.5 | 73 | 42 | 26 | 14.5 | 3.2 | 20.5 | 9 | 17 |
IPKD06-04 | 6 | R1/2 | 13.5 | 76.5 | 42 | 26 | 14.5 | 3.2 | 20.5 | 9 | 21 |
IPKD08-01 | 8 | R1/8 | 7.5 | 89 | 48 | 29 | 18.4 | 3.2 | 24 | 11 | 14 |
IPKD08-02 | 8 | R1/4 | 9.5 | 91 | 48 | 29 | 18.4 | 3.2 | 24 | 11 | 14 |
IPKD08-03 | 8 | R3/8 | 10.5 | 92.5 | 48 | 29 | 18.4 | 3.2 | 24 | 11 | 17 |
IPKD08-04 | 8 | R1/2 | 13.5 | 96 | 48 | 29 | 18.4 | 3.2 | 24 | 11 | 21 |
IPKD10-01 | 10 | R1/8 | 7.5 | 100 | 60.8 | 36.8 | 18.4 | 4.2 | 28.5 | 11 | 17 |
IPKD10-02 | 10 | R1/4 | 9.5 | 102 | 60.8 | 36.8 | 18.4 | 4.2 | 28.5 | 11 | 17 |
IPKD10-03 | 10 | R3/8 | 10.5 | 103 | 60.8 | 36.8 | 18.4 | 4.2 | 28.5 | 11 | 17 |
IPKD10-04 | 10 | R1/2 | 13.5 | 106.5 | 60.8 | 36.8 | 18.4 | 4.2 | 28.5 | 11 | 21 |
