特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

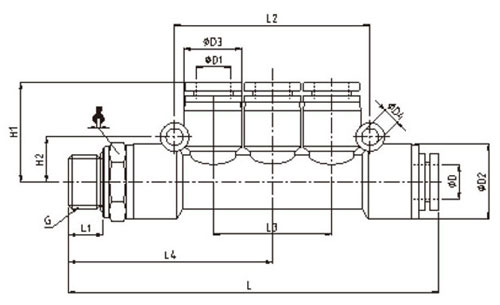

MODEL | ΦD | G | ΦD1 | ΦD2 | ΦD3 | ΦD4 | H1 | H2 | L1 | L2 | L3 | L4 |  |
IPKD04-G01 | 4 | G1/8 | 4 | 14.5 | 13 | 3.2 | 19 | 9 | 68 | 5.5 | 42 | 26 | 14 |
IPKD04-G02 | 4 | G1/4 | 4 | 14.5 | 13 | 3.2 | 19 | 9 | 70 | 7.5 | 42 | 26 | 17 |
IPKD06-G01 | 6 | G1/8 | 6 | 14.5 | 13 | 3.2 | 20.5 | 9 | 68 | 5.5 | 42 | 26 | 14 |
IPKD06-G02 | 6 | G1/4 | 6 | 14.5 | 13 | 3.2 | 20.5 | 9 | 70 | 7.5 | 42 | 26 | 17 |
IPKD06-G03 | 6 | G3/8 | 6 | 14.5 | 13 | 3.2 | 20.5 | 9 | 70.5 | 7.5 | 42 | 26 | 20 |
IPKD06-G04 | 6 | G1/2 | 6 | 14.5 | 13 | 3.2 | 20.5 | 9 | 73 | 10 | 42 | 26 | 24 |
IPKD08-G01 | 8 | G1/8 | 8 | 18.4 | 14.5 | 3.2 | 24 | 11 | 87 | 5.5 | 48 | 29 | 14 |
IPKD08-G02 | 8 | G1/4 | 8 | 18.4 | 14.5 | 3.2 | 24 | 11 | 89 | 7.5 | 48 | 29 | 17 |
IPKD08-G03 | 8 | G3/8 | 8 | 18.4 | 14.5 | 3.2 | 24 | 11 | 89.5 | 7.5 | 48 | 29 | 20 |
IPKD08-G04 | 8 | G1/2 | 8 | 18.4 | 14.5 | 3.2 | 24 | 11 | 92.5 | 10 | 48 | 29 | 24 |
IPKD10-G01 | 10 | G1/8 | 10 | 18.4 | 18.4 | 4.2 | 27.5 | 12 | 95.5 | 5.5 | 60.8 | 37 | 17 |
IPKD10-G02 | 10 | G1/4 | 10 | 18.4 | 18.4 | 4.2 | 27.5 | 12 | 98 | 7.5 | 60.8 | 37 | 17 |
IPKD10-G03 | 10 | G3/8 | 10 | 18.4 | 18.4 | 4.2 | 27.5 | 12 | 98.5 | 7.5 | 60.8 | 37 | 20 |
IPKD10-G04 | 10 | G1/2 | 10 | 18.4 | 18.4 | 4.2 | 27.5 | 12 | 101.5 | 10 | 60.8 | 37 | 24 |
