特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

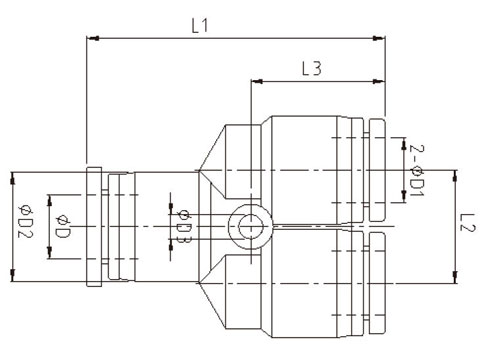

MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L1 | L2 | L3 |
IPY04 | 4 | 4 | 11.5 | 3.2 | 36.5 | 11 | 14.5 |
IPY06 | 6 | 6 | 13.5 | 3.2 | 37.5 | 13 | 15 |
IPY08 | 8 | 8 | 15 | 3.2 | 39.8 | 15 | 18 |
IPY10 | 10 | 10 | 19 | 4.2 | 50 | 18 | 21 |
IPY12 | 12 | 12 | 21.5 | 4.2 | 53 | 21 | 21.5 |
IPY16 | 16 | 16 | 26.5 | 4.3 | 58.5 | 25 | 22 |
IPY06-04 | 6 | 4 | 13.5 | 3.2 | 37.5 | 13 | 15 |
IPY08-04 | 8 | 4 | 15 | 3.2 | 39.8 | 15 | 18 |
IPY08-06 | 8 | 6 | 15 | 3.2 | 39.8 | 15 | 18 |
IPY10-06 | 10 | 6 | 19 | 4.2 | 39.8 | 18 | 21 |
IPY10-08 | 10 | 8 | 19 | 4.2 | 50 | 18 | 21 |
IPY12-08 | 12 | 8 | 21.5 | 4.2 | 53 | 21 | 21.5 |
IPY12-10 | 12 | 10 | 21.5 | 4.2 | 53 | 21 | 21.5 |
MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L1 | L2 | L3 |
IPY5/32 | 5/32 | 5/32 | 11.5 | 3.2 | 36.5 | 11 | 14.5 |
IPY3/16 | 3/16 | 3/16 | 11.5 | 3.2 | 36.5 | 11 | 14.5 |
IPY1/4 | 1/4 | 1/4 | 13.5 | 3.2 | 37.5 | 13 | 15 |
IPY5/16 | 5/16 | 5/16 | 15 | 3.2 | 39.8 | 15 | 18 |
IPY3/8 | 3/8 | 3/8 | 19 | 4.2 | 50 | 18 | 21 |
IPY1/2 | 1/2 | 1/2 | 21.5 | 4.2 | 53 | 21 | 21.5 |
IPY3/16-5/32 | 3/16 | 5/32 | 11.5 | 3.2 | 36.5 | 11 | 14.5 |
IPY1/4-3/16 | 1/4 | 3/16 | 13.5 | 3.2 | 37.5 | 13 | 15 |
IPY3/8-5/16 | 3/8 | 5/16 | 19 | 4.2 | 50 | 18 | 21 |
IPY1/2-3/8 | 1/ 2 | 3/8 | 21.5 | 4.2 | 53 | 21 | 21.5 |
