特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

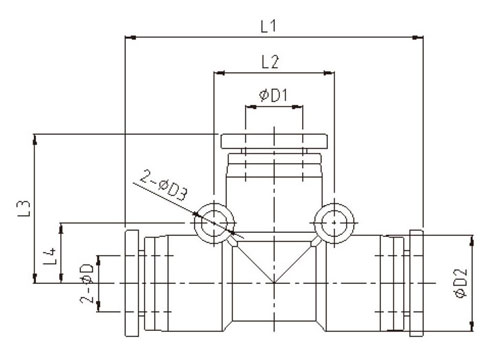

MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L1 | L2 | L3 | L4 |
IPE04 | 4 | 4 | 11.5 | 3.2 | 38 | 14 | 19 | 7 |
IPE06 | 6 | 6 | 13.5 | 3.2 | 39 | 16 | 19.2 | 8 |
IPE08 | 8 | 8 | 15 | 3.2 | 45 | 18 | 22.5 | 9 |
IPE10 | 10 | 10 | 19 | 4.2 | 57 | 24 | 27.8 | 12 |
IPE12 | 12 | 12 | 21.5 | 4.3 | 59 | 27 | 29.5 | 13.5 |
IPE14 | 14 | 14 | 23.5 |
| 59 |
| 29.5 |
|
IPE15 | 15 | 15 | 26.5 |
| 64 |
| 32 |
|
IPE16 | 16 | 16 | 26.5 |
| 64 |
| 32 |
|
IPE06-04-06 | 6 | 4 | 13.5 | 3.2 | 39 | 16 | 19.2 | 8 |
IPE08-04-08 | 8 | 4 | 15 | 3.2 | 45 | 18 | 22.5 | 9 |
IPE08-06-08 | 8 | 6 | 15 | 3.2 | 45 | 18 | 22.5 | 9 |
IPE10-06-10 | 10 | 6 | 19 | 4.2 | 57 | 24 | 26.3 | 12 |
IPE10-08-10 | 10 | 8 | 19 | 4.2 | 57 | 24 | 26.8 | 12 |
IPE12-08-12 | 12 | 8 | 21.5 | 4.3 | 59 | 27 | 28.5 | 13.5 |
IPE12-10-12 | 12 | 10 | 21.5 | 4.3 | 59 | 27 | 29.5 | 13.5 |
IPE14-12-14 | 14 | 12 | 23.5 |
| 59 |
| 29.5 |
|
IPE16-12-16 | 16 | 12 | 26.5 |
| 64 |
| 32 |
|
IPE16-14-16 | 16 | 14 | 26.5 |
| 64 |
| 32 |
|
MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L1 | L2 | L3 | L4 |
IPE5/32 | 5/32 | 5/32 | 11.5 | 3.2 | 38 | 14 | 19 | 7 |
IPE3/16 | 3/16 | 3/16 | 11.5 | 3.2 | 38 | 14 | 19 | 7 |
IPE1/4 | 1/4 | 1/4 | 13.5 | 3.2 | 39 | 16 | 19.2 | 8 |
IPE5/16 | 5/16 | 5/16 | 15 | 3.2 | 45 | 18 | 22.5 | 9 |
IPE3/8 | 3/8 | 3/8 | 19 | 4.2 | 57 | 24 | 27.8 | 12 |
IPE1/2 | 1/2 | 1/2 | 21.5 | 4.3 | 59 | 27 | 29.5 | 13.5 |
IPE3/16-5/32-3/16 | 3/16 | 5/32 | 11.5 | 3.2 | 38 | 14 | 19 | 7 |
IPE1/4-3/16-1/4 | 1/4 | 3/16 | 13.5 | 3.2 | 39 | 16 | 19.2 | 8 |
IPE5/16-1/4-5/16 | 5/16 | 1/4 | 15 | 3.2 | 45 | 18 | 22.5 | 9 |
IPE3/8-5/16-3/8 | 3/8 | 5/16 | 19 | 4.2 | 57 | 24 | 26.8 | 12 |
IPE1/2-3/8-1/2 | 1/ 2 | 3/8 | 21.5 | 4.3 | 59 | 27 | 29.5 | 13.5 |
