特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

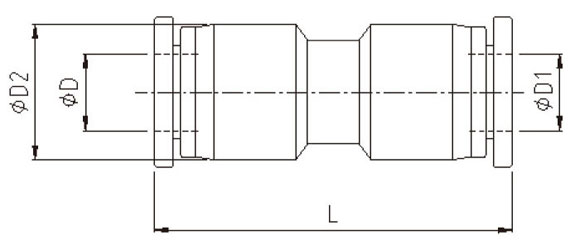

MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L |
IPU04 | 4 | 4 | 11.5 | 11.5 | 34 |
IPU06 | 6 | 6 | 13.5 | 13.5 | 35.5 |
IPU08 | 8 | 8 | 15 | 15 | 38.5 |
IPU10 | 10 | 10 | 19 | 19 | 48 |
IPU12 | 12 | 12 | 21.5 | 21.5 | 49 |
IPU14 | 14 | 14 | 23.5 | 23.5 | 48 |
IPU15 | 15 | 15 | 26.5 | 26.5 | 64 |
IPU16 | 16 | 16 | 26.5 | 26.5 | 64 |
IPU06-04 | 6 | 4 | 13.5 | 11.5 | 34.5 |
IPU08-04 | 8 | 4 | 15 | 13.5 | 36.5 |
IPU08-06 | 8 | 6 | 15 | 13.5 | 36.5 |
IPU10-06 | 10 | 6 | 19 | 15 | 44 |
IPU10-08 | 10 | 8 | 19 | 15 | 44 |
IPU12-06 | 12 | 6 | 21.5 | 19 | 48 |
IPU12-08 | 12 | 8 | 21.5 | 19 | 48 |
IPU12-10 | 12 | 10 | 21.5 | 19 | 49 |
IPU14-12 | 14 | 12 | 23.5 | 23.5 | 48 |
IPU16-12 | 16 | 12 | 26.5 | 26.5 | 64 |
IPU16-14 | 16 | 14 | 26.5 | 26.5 | 64 |
MODEL | ΦD | ΦD1 | ΦD2 | ΦD3 | L |
IPU5/32 | 5/32 | 5/32 | 11.5 | 11.5 | 34 |
IPU3/16 | 3/16 | 3/16 | 11.5 | 11.5 | 34 |
IPU1/4 | 1/4 | 1/4 | 13.5 | 13.5 | 35.5 |
IPU5/16 | 5/16 | 5/16 | 15 | 15 | 38.5 |
IPU3/8 | 3/8 | 3/8 | 19 | 19 | 48 |
IPU1/2 | 1/2 | 1/2 | 21.5 | 21.5 | 49 |
IPU3/16-5/32 | 3/16 | 5/32 | 11.5 | 11.5 | 34 |
IPU1/4-3/16 | 1/4 | 3/16 | 13.5 | 11.5 | 35.5 |
IPU5/16-1/4 | 5/16 | 1/4 | 15 | 13.5 | 38.5 |
IPU3/8-5/16 | 3/8 | 5/16 | 19 | 15 | 47 |
IPU1/2-3/8 | 1/ 2 | 3/8 | 21.5 | 19 | 49 |
