特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

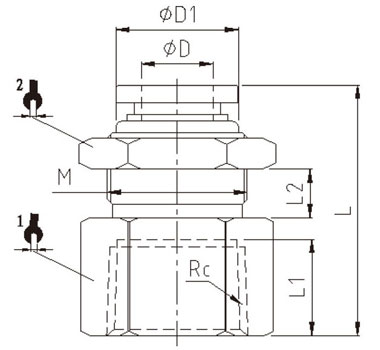

MODEL | ΦD | Rc | L | L1 | L2 | ΦD1 |  1 | 2 | M |
IPMF04-01 | 4 | Rc1/8 | 24 | 8.5 | 6 | 10 | 14 | 14 | M12X1 |
IPMF04-02 | 4 | Rc1/4 | 26.5 | 11 | 6 | 10 | 17 | 14 | M12X1 |
IPMF06-01 | 6 | Rc1/8 | 24.8 | 8.5 | 7 | 12 | 17 | 17 | M14X1 |
IPMF06-02 | 6 | Rc1/4 | 29.5 | 11 | 7 | 12 | 17 | 17 | M14X1 |
IPMF06-03 | 6 | Rc3/8 | 30.5 | 12 | 7 | 12 | 21 | 17 | M14X1 |
IPMF06-04 | 6 | Rc1/2 | 33 | 14 | 7 | 12 | 24 | 17 | M14X1 |
IPMF08-01 | 8 | Rc1/8 | 26.5 | 8.5 | 7.5 | 14 | 19 | 19 | M16X1 |
IPMF08-02 | 8 | Rc1/4 | 32 | 11 | 7.5 | 14 | 19 | 19 | M16X1 |
IPMF08-03 | 8 | Rc3/8 | 34.3 | 12 | 7.5 | 14 | 21 | 19 | M16X1 |
IPMF08-04 | 8 | Rc1/2 | 36.5 | 14 | 7.5 | 14 | 24 | 19 | M16X1 |
IPMF10-01 | 10 | Rc1/8 | 30 | 8.5 | 9.5 | 17 | 24 | 24 | M20X1 |
IPMF10-02 | 10 | Rc1/4 | 32.5 | 11 | 9.5 | 17 | 24 | 24 | M20X1 |
IPMF10-03 | 10 | Rc3/8 | 34 | 12 | 9.5 | 17 | 24 | 24 | M20X1 |
IPMF10-04 | 10 | Rc1/2 | 38 | 14 | 9.5 | 17 | 24 | 24 | M20X1 |
IPMF12-01 | 12 | Rc1/8 | 31.5 | 8.5 | 10 | 20 | 24 | 26 | M22X1 |
IPMF12-02 | 12 | Rc1/4 | 34 | 11 | 10 | 20 | 24 | 26 | M22X1 |
IPMF12-03 | 12 | Rc3/8 | 35 | 12 | 10 | 20 | 24 | 26 | M22X1 |
IPMF12-04 | 12 | Rc1/2 | 37 | 14 | 10 | 20 | 24 | 26 | M22X1 |
