特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

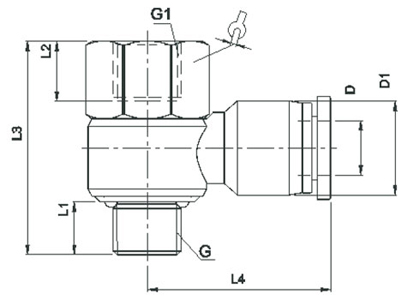

MODEL | ΦD | G | G1 | L1 | L2 | L3 | L4 | ΦD1 |  |
IPHF04-G01 | 4 | G1/8 | G1/8 | 5.5 | 8.5 | 29 | 23.5 | 11.5 | 14 |
IPHF04-G02 | 4 | G1/4 | G1/4 | 7.5 | 11 | 35 | 25.5 | 11.5 | 17 |
IPHF06-G01 | 6 | G1/8 | G1/8 | 5.5 | 8.5 | 29 | 23.5 | 13.5 | 14 |
IPHF06-G02 | 6 | G1/4 | G1/4 | 7.5 | 11 | 35 | 25.4 | 13.5 | 17 |
IPHF06-G03 | 6 | G3/8 | G3/8 | 7.5 | 12 | 41 | 29.5 | 13.5 | 21 |
IPHF06-G04 | 6 | G1/2 | G1/2 | 10 | 14 | 47.5 | 32.5 | 13.5 | 24 |
IPHF08-G01 | 8 | G1/8 | G1/8 | 5.5 | 8.5 | 29 | 26.5 | 15 | 14 |
IPHF08-G02 | 8 | G1/4 | G1/4 | 7.5 | 11 | 35 | 28.9 | 15 | 17 |
IPHF08-G03 | 8 | G3/8 | G3/8 | 7.5 | 12 | 41 | 29.8 | 15 | 21 |
IPHF08-G04 | 8 | G1/2 | G1/2 | 10 | 14 | 47.5 | 32.5 | 15 | 24 |
IPHF10-G01 | 10 | G1/8 | G1/8 | 5.5 | 8.5 | 32 | 30.3 | 19 | 14 |
IPHF10-G02 | 10 | G1/4 | G1/4 | 7.5 | 11 | 36 | 32.6 | 19 | 17 |
IPHF10-G03 | 10 | G3/8 | G3/8 | 7.5 | 12 | 41 | 33 | 19 | 21 |
IPHF10-G04 | 10 | G1/2 | G1/2 | 10 | 14 | 47.5 | 36 | 19 | 24 |
IPHF12-G02 | 12 | G1/4 | G1/4 | 7.5 | 11 | 36 | 33.5 | 21.5 | 17 |
IPHF12-G03 | 12 | G3/8 | G3/8 | 7.5 | 12 | 41 | 35.5 | 21.5 | 21 |
IPHF12-G04 | 12 | G1/2 | G1/2 | 10 | 14 | 47.5 | 36.5 | 21.5 | 24 |
