特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

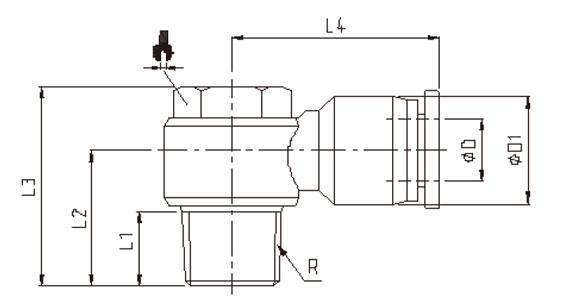

MODEL | ΦD | R | L1 | L2 | L3 | L4 | ΦD1 |  |
IPH04-M5 | 4 | M5 | 3.5 | 10.7 | 17.3 | 20.5 | 11.5 | 8 |
IPH04-01 | 4 | R1/8 | 7.5 | 15 | 23 | 23.5 | 11.5 | 12 |
IPH04-02 | 4 | R1/4 | 9.5 | 16.8 | 26.3 | 25.5 | 11.5 | 14 |
IPH06-M5 | 6 | M5 | 3.5 | 11.7 | 17.3 | 22 | 13.5 | 8 |
IPH06-01 | 6 | R1/8 | 7.5 | 15 | 23 | 23.5 | 13.5 | 12 |
IPH06-02 | 6 | R1/4 | 9.5 | 16.2 | 26.3 | 25.4 | 13.5 | 14 |
IPH06-03 | 6 | R3/8 | 10.5 | 19 | 31.9 | 29.5 | 13.5 | 19 |
IPH08-01 | 8 | R1/8 | 7.5 | 15.7 | 23 | 26.5 | 15 | 12 |
IPH08-02 | 8 | R1/4 | 9.5 | 17.5 | 26.3 | 28.9 | 15 | 14 |
IPH08-03 | 8 | R3/8 | 10.5 | 19 | 31.9 | 29.8 | 15 | 19 |
IPH08-04 | 8 | R1/2 | 13.5 | 24 | 38.6 | 32.5 | 15 | 24 |
IPH10-01 | 10 | R1/8 | 7.5 | 18 | 23 | 30.5 | 19 | 12 |
IPH10-02 | 10 | R1/4 | 9.5 | 19.5 | 26.3 | 32.6 | 19 | 14 |
IPH10-03 | 10 | R3/8 | 10.5 | 21 | 31.9 | 33 | 19 | 19 |
IPH10-04 | 10 | R1/2 | 13.5 | 24.2 | 38.6 | 36 | 19 | 24 |
IPH12-02 | 12 | R1/4 | 9.5 | 20.8 | 26.3 | 33.5 | 21.5 | 14 |
IPH12-03 | 12 | R3/8 | 10.5 | 22.2 | 31.9 | 35.5 | 21.5 | 19 |
IPH12-04 | 12 | R1/2 | 13.5 | 25.5 | 38.6 | 36.5 | 21.5 | 24 |
