特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

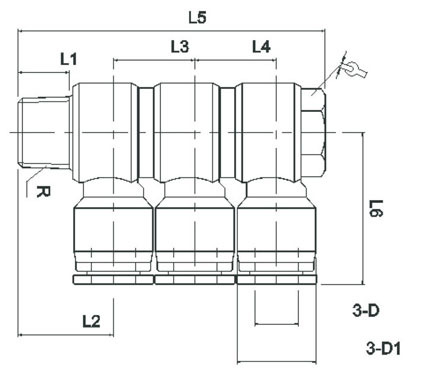

MODEL | ΦD | R | L1 | L2 | L3 | L4 | L5 | L6 | ΦD1 |
|
|
IPHT04-01(3) | 4 | R1/8 | 7.5 | 14 | 15 | 15 | 53 | 23.5 | 11.5 | 12 |
IPHT04-02(3) | 4 | R1/4 | 9.5 | 16.5 | 15 | 15 | 56.5 | 25.5 | 11.5 | 14 |
IPHT06-01(3) | 6 | R1/8 | 7.5 | 14 | 15 | 15 | 53 | 23.5 | 13.5 | 12 |
IPHT06-02(3) | 6 | R1/4 | 9.5 | 16.5 | 15 | 15 | 56.5 | 25.4 | 13.5 | 14 |
IPHT06-03(3) | 6 | R3/8 | 10.5 | 18.5 | 15.7 | 15.7 | 65.3 | 29.5 | 13.5 | 19 |
IPHT08-01(3) | 8 | R1/8 | 7.5 | 14.5 | 15 | 15 | 53 | 26.5 | 15 | 12 |
IPHT08-02(3) | 8 | R1/4 | 9.5 | 17.5 | 15 | 15 | 56.5 | 29 | 15 | 14 |
IPHT08-03(3) | 8 | R3/8 | 10.5 | 18.5 | 15.7 | 15.7 | 65.3 | 30 | 15 | 19 |
IPHT08-04(3) | 8 | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 32.5 | 15 | 24 |
IPHT10-01(3) | 10 | R1/8 | 7.5 | 18 | 19 | 19 | 63 | 30.5 | 19 | 12 |
IPHT10-02(3) | 10 | R1/4 | 9.5 | 18.5 | 21.5 | 21.5 | 69.5 | 32.5 | 19 | 14 |
IPHT10-03(3) | 10 | R3/8 | 10.5 | 20.5 | 21.5 | 21.5 | 78 | 33 | 19 | 19 |
IPHT10-04(3) | 10 | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 36 | 19 | 24 |
IPHT12-02(3) | 12 | R1/4 | 9.5 | 18.5 | 21.5 | 21.5 | 69.5 | 33.5 | 21.5 | 14 |
IPHT12-03(3) | 12 | R3/8 | 10.5 | 22 | 21.5 | 21.5 | 78 | 35.5 | 21.5 | 19 |
IPHT12-04(3) | 12 | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 36.5 | 21.5 | 24 |
