特性：
快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有的R跟NPT螺纹胶都起密封作用
所有的直螺纹都用标准的O型圈
产品详情：

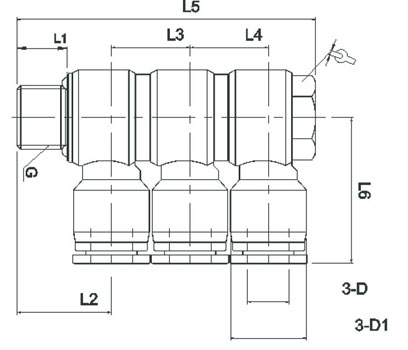

MODEL | ΦD | G | L1 | L2 | L3 | L4 | L5 | L6 | ΦD1 |  |
IPHT04-G01(3) | 4 | G1/8 | 5.5 | 14 | 15 | 15 | 53 | 23.5 | 11.5 | 12 |
IPHT04-G02(3) | 4 | G1/4 | 7.5 | 17.3 | 15 | 15 | 56.3 | 25.5 | 11.5 | 14 |
IPHT06-G01(3) | 6 | G1/8 | 5.5 | 14 | 15 | 15 | 53 | 23.5 | 13.5 | 12 |
IPHT06-G02(3) | 6 | G1/4 | 7.5 | 17.3 | 15 | 15 | 56.3 | 25.4 | 13.5 | 14 |
IPHT06-G03(3) | 6 | G3/8 | 7.5 | 19 | 15.7 | 15.7 | 64.4 | 29.5 | 13.5 | 19 |
IPHT08-G01(3) | 8 | G1/8 | 5.5 | 15 | 15 | 15 | 53 | 26.5 | 15 | 12 |
IPHT08-G02(3) | 8 | G1/4 | 7.5 | 18.3 | 15 | 15 | 56.3 | 29 | 15 | 14 |
IPHT08-G03(3) | 8 | G3/8 | 7.5 | 19 | 15.7 | 15.7 | 64.4 | 30 | 15 | 19 |
IPHT08-G04(3) | 8 | G1/2 | 10 | 24.5 | 21.5 | 21.5 | 82 | 32.5 | 15 | 24 |
IPHT10-G01(3) | 10 | G1/8 | 5.5 | 16.8 | 19 | 19 | 61.5 | 30.3 | 19 | 12 |
IPHT10-G02(3) | 10 | G1/4 | 7.5 | 20 | 21.5 | 21.5 | 69.3 | 32.5 | 19 | 14 |
IPHT10-G03(3) | 10 | G3/8 | 7.5 | 21 | 21.2 | 21.2 | 75.4 | 33 | 19 | 19 |
IPHT10-G04(3) | 10 | G1/2 | 10 | 25 | 21.5 | 21.5 | 82 | 36 | 19 | 24 |
IPHT12-G02(3) | 12 | G1/4 | 7.5 | 21.5 | 21.5 | 21.5 | 69.3 | 33.5 | 21.5 | 14 |
IPHT12-G03(3) | 12 | G3/8 | 7.5 | 22 | 21.2 | 21.2 | 75.4 | 35.5 | 21.5 | 19 |
IPHT12-G04(3) | 12 | G1/2 | 10 | 26 | 21.5 | 21.5 | 82 | 36.5 | 21.5 | 24 |
