特性：
手控阀门是用来控制空气流向
手控阀门和球阀是控制气动装置空气压力的开与关
当设备要进行必要的检查和维修保养，手控阀可使剩余压力都释放
手控阀门有四种类型供使用
产品详情：

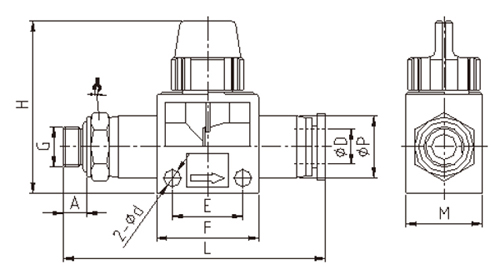

MODEL | ΦD | G | A | Φp | Φd | E | F | L | H | M |  |
HVSF G01-06(B) | 6 | G1/8 | 5.5 | 15 | 4.2 | 16.5 | 24 | 58 | 41 | 18 | 14 |
HVSF G02-06(B) | 6 | G1/4 | 7.5 | 15 | 4.2 | 16.5 | 24 | 60.5 | 41 | 18 | 17 |
HVSF G03-06(B) | 6 | G3/8 | 7.5 | 15 | 4.2 | 16.5 | 24 | 61 | 41 | 18 | 20 |
HVSF G01-08(B) | 8 | G1/8 | 5.5 | 15 | 4.2 | 16.5 | 24 | 59 | 41 | 18 | 14 |
HVSF G02-08(B) | 8 | G1/4 | 7.5 | 15 | 4.2 | 16.5 | 24 | 61.5 | 41 | 18 | 17 |
HVSF G03-08(B) | 8 | G3/8 | 7.5 | 15 | 4.2 | 16.5 | 24 | 62 | 41 | 18 | 20 |
HVSF G02-10(B) | 10 | G1/4 | 7.5 | 21.5 | 4.2 | 21.5 | 29 | 73 | 45 | 22 | 21 |
HVSF G03-10(B) | 10 | G3/8 | 7.5 | 21.5 | 4.2 | 21.5 | 29 | 73 | 45 | 22 | 21 |
HVSF G04-10(B) | 10 | G1/2 | 10 | 21.5 | 4.2 | 21.5 | 29 | 76 | 45 | 22 | 24 |
HVSF G02-12(B) | 12 | G1/4 | 7.5 | 21.5 | 4.2 | 21.5 | 29 | 73 | 45 | 22 | 21 |
HVSF G03-12(B) | 12 | G3/8 | 7.5 | 21.5 | 4.2 | 21.5 | 29 | 73 | 45 | 22 | 21 |
HVSF G04-12(B) | 12 | G1/2 | 10 | 21.5 | 4.2 | 21.5 | 29 | 76 | 45 | 22 | 24 |
