特性：
超小型产品(COMPACT)，比普通型号体积40%，外型尺寸小20%，最小型化的ONE-TOUCHFITTING
由于表面有镀铬处理，所以耐腐蚀性突出
迷你接头安装空间小
迷你接头广泛的应用尼龙管，并且也能承受高压
产品详情：

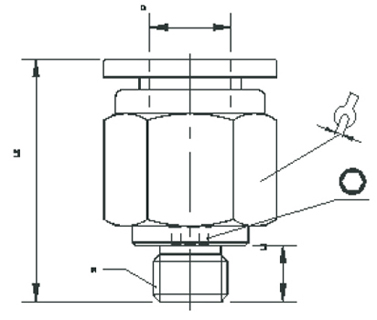

MODEL | ΦD | R | L1 | L2 |  |  |
PC03-M3C | 3 | M3X0.5 | 3.5 | 15 |
| 8 |
PC03-M5C | 3 | M5X0.8 | 3.5 | 16 | 2 | 8 |
PC03-M6C | 3 | M6X1.0 | 4 | 16 | 2 | 8 |
PC03-01C | 3 | R1/8 | 7.5 | 15 | 2 | 10 |
PC03-G01C | 3 | G1/8 | 5.5 | 14.6 | 2 | 14 |
PC04-M3C | 4 | M3X0.5 | 3.5 | 17.5 |
| 8 |
PC04-M5C | 4 | M5X0.8 | 3.5 | 18.5 | 2 | 8 |
PC04-M6C | 4 | M6X1.0 | 4 | 19 | 2 | 8 |
PC04-01C | 4 | R1/8 | 7.5 | 16 | 3 | 10 |
PC04-G01C | 4 | G1/8 | 5.5 | 15.2 | 3 | 14 |
PC04-G02C | 4 | G1/4 | 7.5 | 17.2 | 3 | 17 |
PC06-M3C | 6 | M3X0.5 | 3.5 | 18 |
| 10 |
PC06-M5C | 6 | M5X0.8 | 3.5 | 18 | 2 | 10 |
PC06-M6C | 6 | M6X1.0 | 4 | 18.5 | 2 | 10 |
PC06-01C | 6 | R1/8 | 7.5 | 18.5 | 4 | 10 |
PC06-G01C | 6 | G1/8 | 5 | 17.2 | 4 | 13 |
PC06-G02C | 6 | G1/4 | 7.5 | 18.5 | 4 | 17 |
