特性：
超小型产品(COMPACT)，比普通型号体积40%，外型尺寸小20%，最小型化的ONE-TOUCHFITTING
由于表面有镀铬处理，所以耐腐蚀性突出
迷你接头安装空间小
迷你接头广泛的应用尼龙管，并且也能承受高压
产品详情：

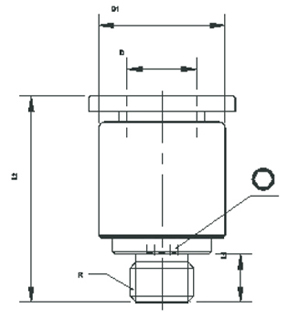

MODEL | ΦD | R | L1 | L2 | ΦD1 | ΦD2 |  |
POC03-M3C | 3 | M3X0.5 | 3.5 | 15 | 6.5 | 7.5 |
|
POC03-M5C | 3 | M5X0.8 | 3.5 | 16 | 7 | 7.5 | 2 |
POC03-M6C | 3 | M6X1.0 | 4 | 16 | 8 | 7.5 | 2 |
POC03-G01C | 3 | G1/8 | 5.5 | 14.6 | 14 | 7.5 | 2 |
POC04-M3C | 4 | M3X0.5 | 3.5 | 17.5 | 8 | 10 |
|
POC04-M5C | 4 | M5X0.8 | 3.5 | 18 | 8 | 10 | 2 |
POC04-M6C | 4 | M6X1.0 | 4 | 18.5 | 9 | 10 | 2 |
POC04-01C | 4 | R1/8 | 7.5 | 15.5 | 10 | 10 | 3 |
POC04-G01C | 4 | G1/8 | 5.5 | 15.2 | 14 | 10 | 3 |
POC04-G02C | 4 | G1/4 | 7.5 | 17.2 | 17 | 10 | 3 |
POC06-M3C | 6 | M3X0.5 | 3.5 | 18 | 10 | 11.5 |
|
POC06-M5C | 6 | M5X0.8 | 3.5 | 18 | 10 | 11.5 | 2 |
POC06-M6C | 6 | M6X1.0 | 4 | 18.5 | 10 | 11.5 | 2 |
POC06-01C | 6 | R1/8 | 7.5 | 18.5 | 10 | 11.5 | 4 |
POC06-G01C | 6 | G1/8 | 5.5 | 17.6 | 14 | 11.5 | 4 |
POC06-G02C | 6 | G1/4 | 7.5 | 18.5 | 17 | 11.5 | 4 |
