特性:
超小型产品(COMPACT),比普通型号体积40%,外型尺寸小20%,最小型化的ONE-TOUCHFITTING
由于表面有镀铬处理,所以耐腐蚀性突出
迷你接头安装空间小
迷你接头广泛的应用尼龙管,并且也能承受高压
产品详情:

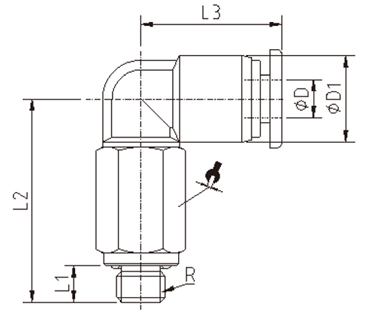

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 | |
PLL03-M3C | 3 | M3X0.5 | 3.5 | 24 | 12 | 7.5 | 8 |
PLL03-M5C | 3 | M5X0.8 | 3.5 | 24 | 12 | 7.5 | 8 |
PLL03-M6C | 3 | M6X1.0 | 4 | 24.5 | 12 | 7.5 | 8 |
PLL03-01C | 3 | R1/8 | 7.5 | 24.5 | 12 | 7.5 | 10 |
PLL03-G01C | 3 | G1/8 | 5.5 | 24 | 12 | 7.5 | 14 |
PLL04-M3C | 4 | M3X0.5 | 3.5 | 29.2 | 14 | 9.5 | 8 |
PLL04-M5C | 4 | M5X0.8 | 3.5 | 29.2 | 14 | 9.5 | 8 |
PLL04-M6C | 4 | M6X1.0 | 4 | 29.6 | 14 | 9.5 | 10 |
PLL04-01C | 4 | R1/8 | 7.5 | 30 | 14 | 9.5 | 10 |
PLL04-G01C | 4 | G1/8 | 5.5 | 28.5 | 14 | 9.5 | 14 |
PLL04-G02C | 4 | G1/4 | 7.5 | 31.5 | 14 | 9.5 | 17 |
PLL06-M5C | 6 | M5X0.8 | 3.5 | 29.2 | 16 | 11.5 | 8 |
PLL06-M6C | 6 | M6X1.0 | 4 | 29.6 | 16 | 11.5 | 10 |
PLL06-01C | 6 | R1/8 | 7.5 | 30 | 16 | 11.5 | 10 |
PLL06-G01C | 6 | G1/8 | 5.5 | 28.5 | 16 | 11.5 | 14 |
PLL06-G02C | 6 | G1/4 | 7.5 | 31.5 | 16 | 11.5 | 17 |
