特性：
超小型产品(COMPACT)，比普通型号体积40%，外型尺寸小20%，最小型化的ONE-TOUCHFITTING
由于表面有镀铬处理，所以耐腐蚀性突出
迷你接头安装空间小
迷你接头广泛的应用尼龙管，并且也能承受高压
产品详情：

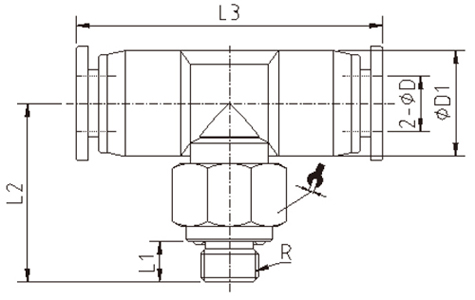

MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
PB03-M3C | 3 | M3X0.5 | 3.5 | 16 | 24 | 7.5 | 8 |
PB03-M5C | 3 | M5X0.8 | 3.5 | 16 | 24 | 7.5 | 8 |
PB03-M6C | 3 | M6X1.0 | 4 | 16.5 | 24 | 7.5 | 8 |
PB03-01C | 3 | R1/8 | 7.5 | 16.5 | 24 | 7.5 | 10 |
PB03-G01C | 3 | G1/8 | 5.5 | 16 | 24 | 7.5 | 14 |
PB04-M3C | 4 | M3X0.5 | 3.5 | 17.2 | 28 | 9.5 | 8 |
PB04-M5C | 4 | M5X0.8 | 3.5 | 17.2 | 28 | 9.5 | 8 |
PB04-M6C | 4 | M6X1.0 | 4 | 17.6 | 28 | 9.5 | 10 |
PB04-01C | 4 | R1/8 | 7.5 | 18 | 28 | 9.5 | 10 |
PB04-G01C | 4 | G1/8 | 5.5 | 16.5 | 28 | 9.5 | 14 |
PB04-G02C | 4 | G1/4 | 7.5 | 19.5 | 28 | 9.5 | 17 |
PB06-M5C | 6 | M5X0.8 | 3.5 | 18.2 | 32 | 11.5 | 8 |
PB06-M6C | 6 | M6X1.0 | 4 | 18.6 | 32 | 11.5 | 10 |
PB06-01C | 6 | R1/8 | 7.5 | 19 | 32 | 11.5 | 10 |
PB06-G01C | 6 | G1/8 | 5.5 | 16.5 | 32 | 11.5 | 14 |
PB06-G02C | 6 | G1/4 | 7.5 | 19.5 | 32 | 11.5 | 17 |
