特性：
全铜快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有R跟NPT螺纹胶都起密封左右
所有直螺纹都用标准的O型圈
产品详情：

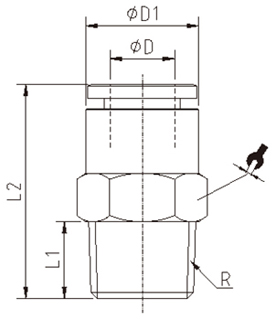

MODEL | ΦD | R | L1 | L2 | ΦD1 |  |
IPCT04-M5 | 4 | M5 | 3.5 | 20.2 | 8 | 8 |
IPCT04-01 | 4 | R1/8 | 7.5 | 19 | 8.5 | 10 |
IPCT04-02 | 4 | R1/4 | 9.5 | 20.5 | 8.5 | 14 |
IPCT06-M5 | 6 | M5 | 3.5 | 24.7 | 12 | 12 |
IPCT06-01 | 6 | R1/8 | 7.5 | 24.7 | 12 | 12 |
IPCT06-02 | 6 | R1/4 | 9.5 | 24.5 | 12 | 14 |
IPCT06-03 | 6 | R3/8 | 10.5 | 23 | 12 | 17 |
IPCT06-04 | 6 | R1/2 | 13.5 | 26 | 12 | 21 |
IPCT08-01 | 8 | R1/8 | 7.5 | 28.7 | 14 | 14 |
IPCT08-02 | 8 | R1/4 | 9.5 | 27.7 | 14 | 14 |
IPCT08-03 | 8 | R3/8 | 10.5 | 22.7 | 14 | 17 |
IPCT08-04 | 8 | R1/2 | 13.5 | 26 | 14 | 21 |
IPCT10-01 | 10 | R1/8 | 7.5 | 31 | 16 | 16 |
IPCT10-02 | 10 | R1/4 | 9.5 | 33 | 16 | 16 |
IPCT10-03 | 10 | R3/8 | 10.5 | 27 | 16 | 17 |
IPCT10-04 | 10 | R1/2 | 13.5 | 26 | 16 | 21 |
IPCT12-02 | 12 | R1/4 | 9.5 | 35 | 18 | 19 |
IPCT12-03 | 12 | R3/8 | 10.5 | 31.7 | 18 | 19 |
IPCT12-04 | 12 | R1/2 | 13.5 | 26.2 | 18 | 21 |
