特性：
全铜快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有R跟NPT螺纹胶都起密封左右
所有直螺纹都用标准的O型圈
产品详情：

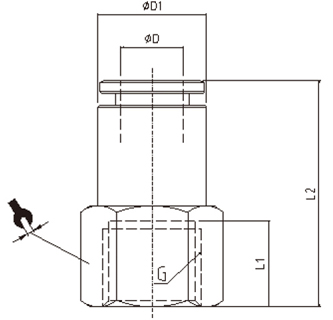

MODEL | ΦD | Rc | L1 | L2 | ΦD1 |  |
IPCF T04-M5 | 4 | M5 | 5.5 | 20 | 8 | 8 |
IPCF T04-01 | 4 | Rc1/8 | 8.5 | 23 | 8.5 | 14 |
IPCF T04-02 | 4 | Rc1/4 | 11 | 25.5 | 8.5 | 17 |
IPCF T06-M5 | 6 | M5 | 5.5 | 25 | 12 | 12 |
IPCF T06-01 | 6 | Rc1/8 | 8.5 | 28 | 12 | 14 |
IPCF T06-02 | 6 | Rc1/4 | 11 | 30.5 | 12 | 17 |
IPCF T06-03 | 6 | Rc3/8 | 12 | 31.5 | 12 | 21 |
IPCF T06-04 | 6 | Rc1/2 | 14 | 33.5 | 12 | 24 |
IPCF T08-01 | 8 | Rc1/8 | 8.5 | 29 | 14 | 14 |
IPCF T08-02 | 8 | Rc1/4 | 11 | 31.5 | 14 | 17 |
IPCF T08-03 | 8 | Rc3/8 | 12 | 32.5 | 14 | 21 |
IPCF T08-04 | 8 | Rc1/2 | 14 | 34.5 | 14 | 24 |
IPCF T10-01 | 10 | Rc1/8 | 8.5 | 31 | 16 | 16 |
IPCF T10-02 | 10 | Rc1/4 | 11 | 33.5 | 16 | 17 |
IPCF T10-03 | 10 | Rc3/8 | 12 | 34.5 | 16 | 21 |
IPCF T10-04 | 10 | Rc1/2 | 14 | 36.5 | 16 | 24 |
IPCF T12-02 | 12 | Rc1/4 | 11 | 35 | 18 | 19 |
IPCF T12-03 | 12 | Rc3/8 | 12 | 36 | 18 | 21 |
IPCF T12-04 | 12 | Rc1/2 | 14 | 38 | 18 | 24 |
