特性：
全铜快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有R跟NPT螺纹胶都起密封左右
所有直螺纹都用标准的O型圈
产品详情：

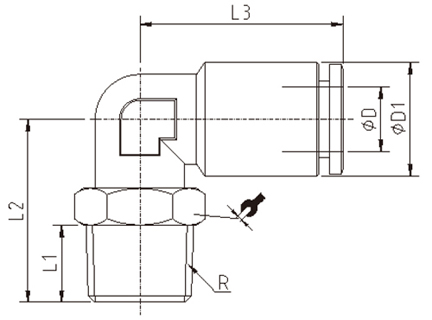

| MODEL | ΦD | R | L1 | L2 | L3 | ΦD1 |  |
| IPLT04-M5 | 4 | M5 | 3.5 | 16 | 18.5 | 8.5 | 10 |
| IPLT04-M6 | 4 | M6 | 4 | 16.5 | 18.5 | 8.5 | 10 |
| IPLT04-01 | 4 | R1/8 | 7.5 | 19.5 | 18.5 | 8.5 | 10 |
| IPLT04-02 | 4 | R1/4 | 9.5 | 21.5 | 18.5 | 8.5 | 14 |
| IPLT06-M5 | 6 | M5 | 3.5 | 16 | 23.5 | 12 | 10 |
| IPLT06-M6 | 6 | M6 | 4 | 16.5 | 23.5 | 12 | 10 |
| IPLT06-01 | 6 | R1/8 | 7.5 | 19.5 | 23.5 | 12 | 10 |
| IPLT06-02 | 6 | R1/4 | 9.5 | 21.5 | 23.5 | 12 | 14 |
| IPLT06-03 | 6 | R3/8 | 10.5 | 23.5 | 23.5 | 12 | 17 |
| IPLT06-04 | 6 | R1/2 | 13.5 | 26.5 | 23.5 | 12 | 21 |
| IPLT08-01 | 8 | R1/8 | 7.5 | 21 | 25.7 | 14 | 12 |
| IPLT08-02 | 8 | R1/4 | 9.5 | 23 | 25.7 | 14 | 14 |
| IPLT08-03 | 8 | R3/8 | 10.5 | 24.5 | 25.7 | 14 | 17 |
| IPLT08-04 | 8 | R1/2 | 13.5 | 25.5 | 25.7 | 14 | 21 |
| IPLT10-01 | 10 | R1/8 | 7.5 | 22.5 | 29 | 16 | 14 |
| IPLT10-02 | 10 | R1/4 | 9.5 | 24.5 | 29 | 16 | 14 |
| IPLT10-03 | 10 | R3/8 | 10.5 | 26 | 29 | 16 | 17 |
| IPLT10-04 | 10 | R1/2 | 13.5 | 29 | 29 | 16 | 21 |
| IPLT12-02 | 12 | R1/4 | 9.5 | 26 | 30.7 | 18 | 17 |
| IPLT12-03 | 12 | R3/8 | 10.5 | 27 | 30.7 | 18 | 17 |
| IPLT12-04 | 12 | R1/2 | 13.5 | 30 | 30.7 | 18 | 21 |
