特性：
全铜快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有R跟NPT螺纹胶都起密封左右
所有直螺纹都用标准的O型圈
产品详情：

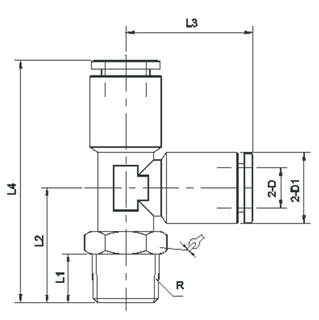

MODEL | ΦD | R | L1 | L2 | L3 | L4 | ΦD1 |  |
IPDT04-M5 | 4 | M5 | 3.5 | 16.5 | 17.5 | 34 | 8.5 | 10 |
IPDT04-01 | 4 | R1/8 | 7.5 | 20 | 17.5 | 37.5 | 8.5 | 10 |
IPDT04-02 | 4 | R1/4 | 9.5 | 22 | 17.5 | 39.5 | 8.5 | 14 |
IPDT06-M5 | 6 | M5 | 3.5 | 16.5 | 25 | 41.5 | 12 | 10 |
IPDT06-01 | 6 | R1/8 | 7.5 | 20 | 25 | 45 | 12 | 10 |
IPDT06-02 | 6 | R1/4 | 9.5 | 22 | 25 | 47 | 12 | 14 |
IPDT06-03 | 6 | R3/8 | 10.5 | 24 | 25 | 49 | 12 | 17 |
IPDT06-04 | 6 | R1/2 | 13.5 | 27 | 25 | 52 | 12 | 21 |
IPDT08-01 | 8 | R1/8 | 7.5 | 21.5 | 27.2 | 48.7 | 14 | 12 |
IPDT08-02 | 8 | R1/4 | 9.5 | 23.5 | 27.2 | 50.7 | 14 | 14 |
IPDT08-03 | 8 | R3/8 | 10.5 | 25 | 27.2 | 52.2 | 14 | 17 |
IPDT08-04 | 8 | R1/2 | 13.5 | 26 | 27.2 | 53.2 | 14 | 21 |
IPDT10-01 | 10 | R1/8 | 7.5 | 23 | 32 | 55 | 16 | 14 |
IPDT10-02 | 10 | R1/4 | 9.5 | 25 | 32 | 57 | 16 | 14 |
IPDT10-03 | 10 | R3/8 | 10.5 | 26.5 | 32 | 58.5 | 16 | 17 |
IPDT10-04 | 10 | R1/2 | 13.5 | 29.5 | 32 | 61.5 | 16 | 21 |
IPDT12-02 | 12 | R1/4 | 9.5 | 26.5 | 33.2 | 59.7 | 18 | 17 |
IPDT12-03 | 12 | R3/8 | 10.5 | 27.5 | 33.2 | 60.7 | 18 | 17 |
IPDT12-04 | 12 | R1/2 | 13.5 | 30.5 | 33.2 | 63.7 | 18 | 21 |
