特性：
全铜快插式气动管接头用于气动管类系统
管接头具有各种各样的型号，可以满足你在气动管类系统中的所有需要
即使安装之后，管道的方向仍然可以自由改变
镀镍的铜体可以防腐蚀和污染
所有R跟NPT螺纹胶都起密封左右
所有直螺纹都用标准的O型圈
产品详情：

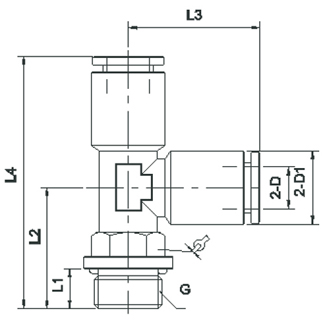

MODEL | ΦD | G | L1 | L2 | L3 | L4 | ΦD1 | ΦD2 |  |
IPDT04-G01 | 4 | G1/8 | 5.5 | 19 | 17.5 | 36.5 | 8.5 | 14 | 14 |
IPDT04-G02 | 4 | G1/4 | 7.5 | 23 | 17.5 | 40.5 | 8.5 | 17 | 10 |
IPDT06-G01 | 6 | G1/8 | 5.5 | 19 | 25 | 44 | 12 | 14 | 14 |
IPDT06-G02 | 6 | G1/4 | 7.5 | 23 | 25 | 48 | 12 | 17 | 10 |
IPDT06-G03 | 6 | G3/8 | 7.5 | 24 | 25 | 49 | 12 | 20 | 10 |
IPDT06-G04 | 6 | G1/2 | 10 | 26.5 | 25 | 51.5 | 12 | 24 | 10 |
IPDT08-G01 | 8 | G1/8 | 5.5 | 20 | 27.2 | 47.2 | 14 | 14 | 14 |
IPDT08-G02 | 8 | G1/4 | 7.5 | 24 | 27.2 | 51.2 | 14 | 17 | 12 |
IPDT08-G03 | 8 | G3/8 | 7.5 | 24.5 | 27.2 | 51.7 | 14 | 20 | 12 |
IPDT08-G04 | 8 | G1/2 | 10 | 27 | 27.2 | 54.2 | 14 | 24 | 12 |
IPDT10-G01 | 10 | G1/8 | 5.5 | 22 | 32 | 54 | 16 | 14 | 14 |
IPDT10-G02 | 10 | G1/4 | 7.5 | 26 | 32 | 58 | 16 | 17 | 14 |
IPDT10-G03 | 10 | G3/8 | 7.5 | 26 | 32 | 58 | 16 | 20 | 14 |
IPDT10-G04 | 10 | G1/2 | 10 | 28.5 | 32 | 60.5 | 16 | 24 | 14 |
IPDT12-G02 | 12 | G1/4 | 7.5 | 25.5 | 33.2 | 58.7 | 18 | 17 | 17 |
IPDT12-G03 | 12 | G3/8 | 7.5 | 27 | 33.2 | 60.2 | 18 | 20 | 17 |
IPDT12-G04 | 12 | G1/2 | 10 | 29.5 | 33.2 | 62.7 | 18 | 24 | 17 |
